New Castle, Delaware:  Comparison of Maps from 1805 & 2005

Application of Geographic Information System Tools to the Latrobe Survey of New Castle

The Survey of Newcastle made by Benjamin Latrobe and assistants in 1805 is historically important because it is a record of where buildings stood, and in some cases how they looked, prior to a fire in 1824 that destroyed many houses.  Copies of the survey have appeared in many books.  But to allow comparison of it with modern maps using modern GIS tools, a digitized version is needed.  Files are available here for black and white versions of the whole map,  a map of the waterfront area in color pieced together from slides in the archives, elevations of the main streets and GIS georeferenced images.

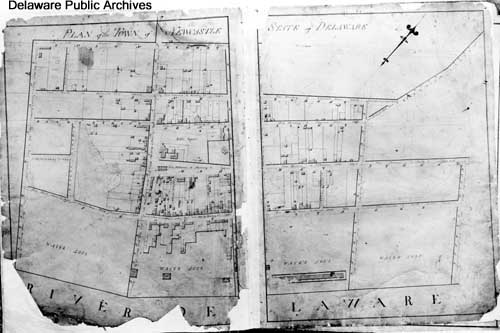

There are two original copies of the survey.  A first draft is at the New Castle Historical Society.  The copy submitted to the town fathers is in the Delaware Public Archives, Dover.   Digital scanning of a black and white version of the Dover copy at 600 dpi provides images that clearly show house locations, but most of the annotations of property owners and building use are illegible.  The copy in Dover is in color.  All of the Front Street image, but only portions of the plan are available in color.

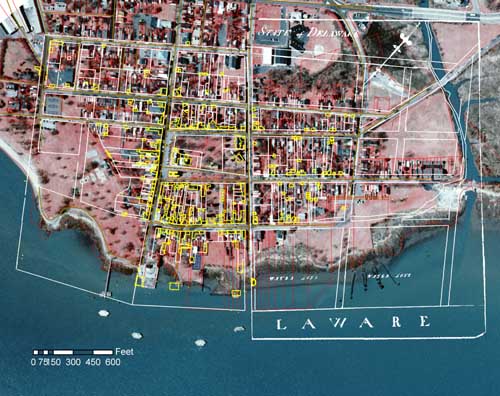

I took the scanned version of the survey, cleaned it up digitally with a photo editor and overlayed it onto New Castle County tax maps and  infrared aerial photos using ArcGIS software.  The result allow some interesting comparisons of changes in the town over 200 years.  The lot lines from the Latrobe Survey are white, those from the tax parcel map are red.

 Click on the images to enlarge them.

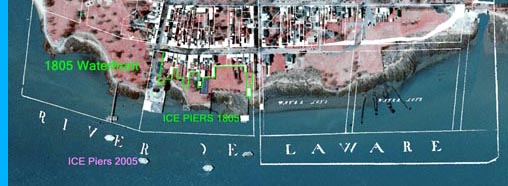

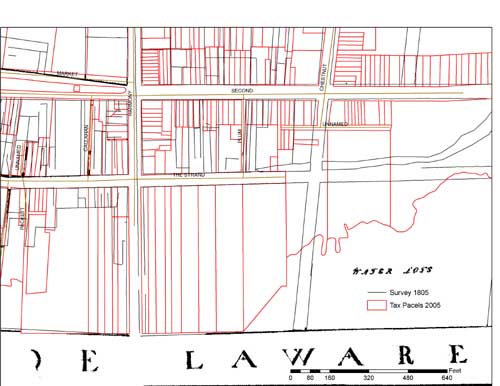

WATERFRONT  The biggest change is in the location of the shoreline.  In 1805, the whole waterfront of the first block of Front Street (now The Strand) consisted of wharves.  Since then, the waterfront has shifted about 200 feet into the river.  The "ice piers" built in 1802 to protect the wooden hulled ships from ice damage in winter lay where there is now land.   The  subsequently built ice piers are much further out in the river.

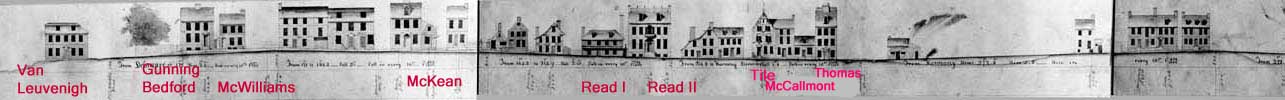

FIRE DAMAGE  A fire that started on a windy day in 1824 behind the Riddle (Jefferson) house destroyed many houses on Front Street.  The 1805 survey therefore provides us a look not only at the elevations (see available files), but also the exact location of what existed at the turn of the 19th century.  The map to the right shows only Front Street and the outline of houses in the survey. The overlay here is based only on surviving houses on this street.  Many of the rebuilt houses were changed in style and size.

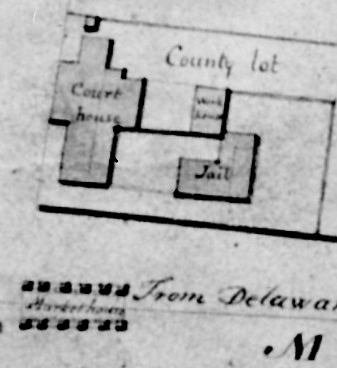

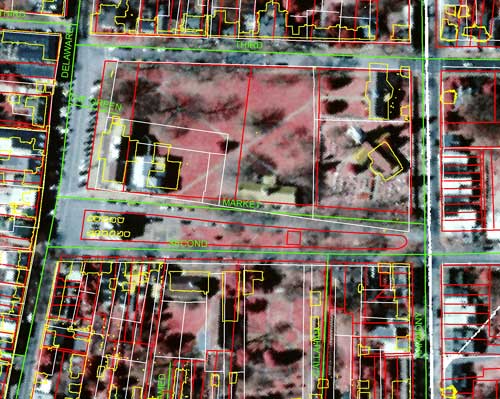

MARKET AREA The courthouse and academy buildings still stand on the Green, but the 12 market houses were replaced by the Town Hall.  The jail and work house were replaced by the Sheriff's house.

The Immanuel Church (built 1703, enlarged 1820 and rebuilt after a fire in 1980) seems to have a different orientation  in the survey  from that shown in the photo.

The georeferencing of the images needs further work.  Note that in the view to the right, Reed's alley runs through the George Reed II house.
WATER LOTS When the Dutch layed out New Amstel in the 1650's, the lots on the river (the Water Lots, as opposed to the "Bank Lots" and inland lots) were 600 feet deep.  Owners had the rights to build wharves along the waterline, and petition to build docks into the river.  [Correct????].  The lots and rights carried over when the English took over in  1664.  The lots for .. to .. The Strand are still 600 feet deep!

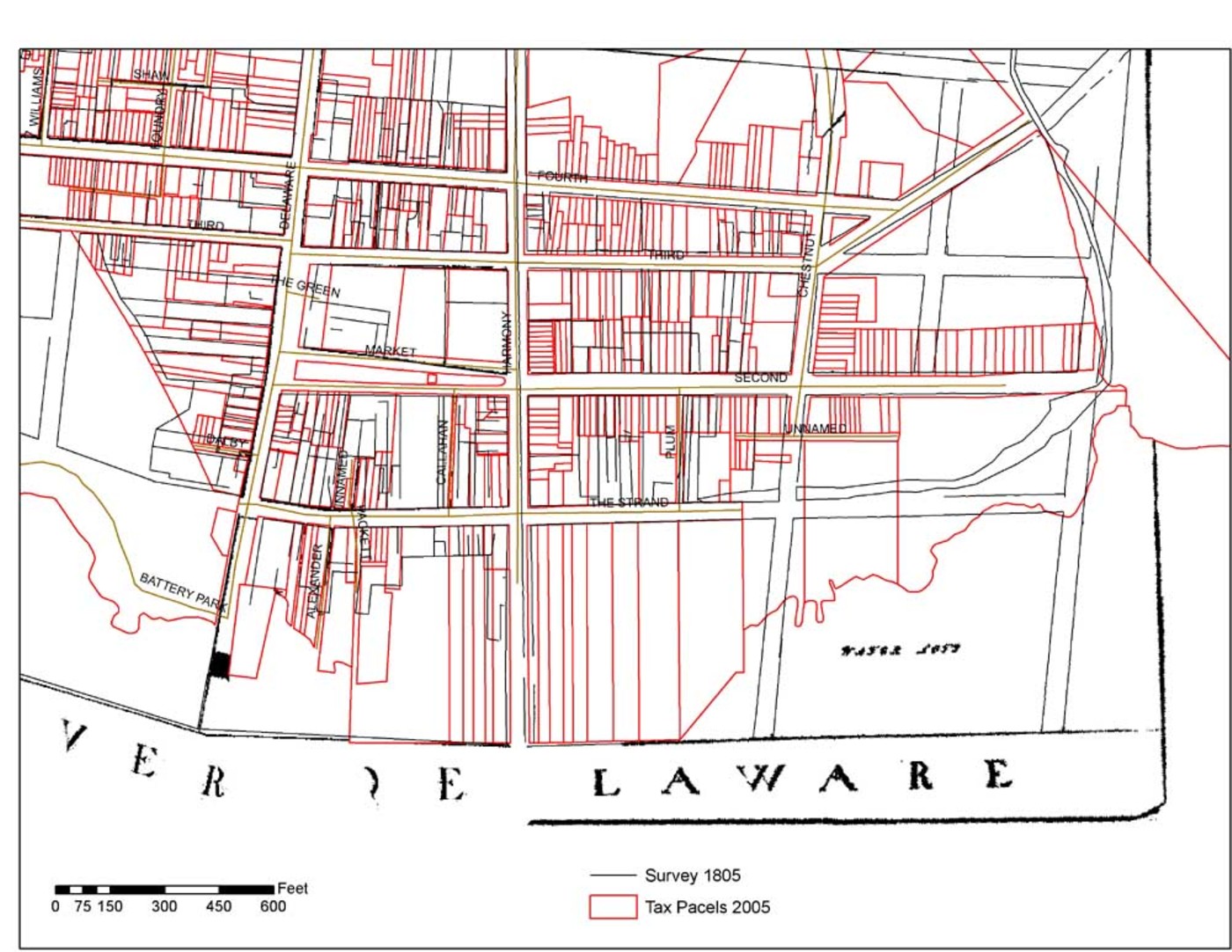

STREET LAYOUT A comparison of the 2005 tax parcel map with the survey shows that the layout and dimensions of the streets in the area covered by the plan is essentially unchanged.  The greatest deviations appear to be near Market street.  A few streets shown on the survey (North, Liberty, Independence) do not now exist.  A few streets (Shaw and Foundry) have been added in the area.  Streets on the east and north edges of town that were proposed but not yet built by 1805  were never built.

Many streets and alleys have been renamed.

ALLEYS  Church Alley has been totally relocated  eastward.  The location of Packet Alley is unchanged, although what appears to be stairs leading into the water have disappeared.   Riddle's Lane (now Plum alley) was designated 'public', with some sort of building in its middle.

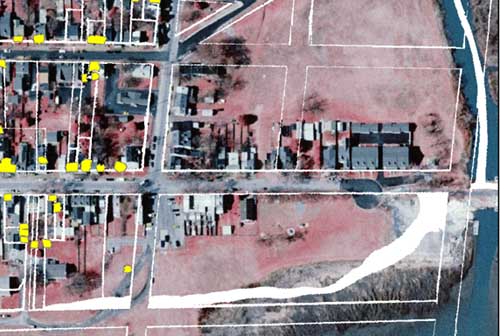

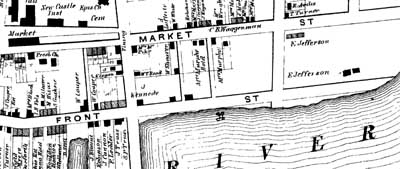

BULL HILL  The Broad Dyke Canal is now much broader and runs directly into the Delaware River.  The dimensions of the dyke itself seem not to have changed much.  The stream appeared to be much narrower in the survey, and curved around and to merge into Front Street.  The exact location of the waterline in the second block of Front Street is not shown on the survey.  Sixty years later in the Beer's atlas, water appears to come right up to the street.

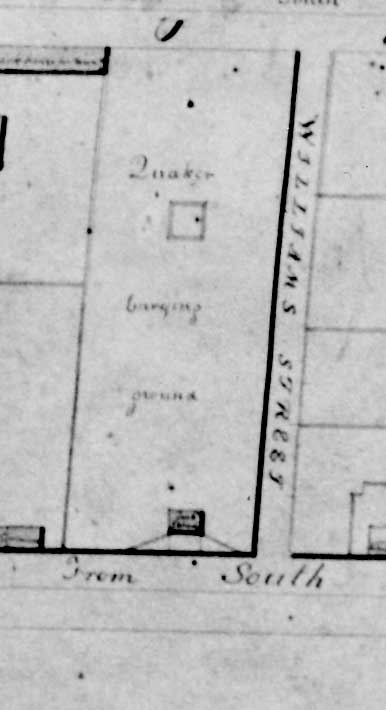

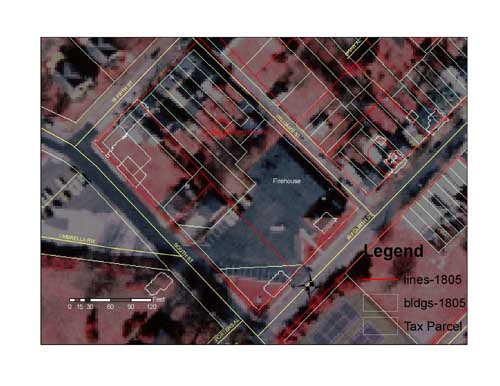

A QUAKER BURYING GROUND and meeting house is shown in the northwest corner of town.   Currently, the Bethany church is in that area, with graves dating back to late 1800's  But the survey shows that the burying ground lies west of Williams Street, not east as is the Bethany church.  The overlay shows the site of the  meeting house as underneath the firehouse.  The burying ground lies underneath the back yards of 69 and 71 W 5th street.

Data files are available

Benjamin Henry Latrobe and his students Robert  Mills and William Strickland surveyed New Castle, Delaware in 1804-1805.  The survey was to help the newly formed local government plan the town's development and to plan the re-grading of the streets to improve drainage. The surveyors  became famous architects.  Among the buildings they designed are the Treasury building,  Washington Navy Yard,  Washington Monument, a portion of the US Capitol, the Philadelphia Waterworks,  Bank of Pennsylvania and Baltimore Cathedral.
